PRIME CHOICE FOR DIGITAL PANORAMIC

PaX-Primo

PRIME CHOICE FOR DIGITAL PANORAMIC,
PaX-Primo

  • Superb image quality from advanced CMOS sensor technology
  • Smart panoramic imaging solution: 'Auto Focusing‘
  • Topmost space-efficiency: simple & compact design
    (2010 Reddot design awardee / iF product 2010 awardee)
  • 10.4" Full color touch LCD panel
  • Optimal capture modes for all of the basic dental diagnosis
  • Easy & exact patient positioning
    : face to face design between operator and patient


HIGH RESOLUTION PANORAMIC DIAGNOSIS

PaX-Uni3D provides the most precise and high quality panoramic image by innovative imaging process and accumulated experience in dental imaging from VATECH. It improves your diagnostic accuracy with increased treatment planning and patient satisfaction.

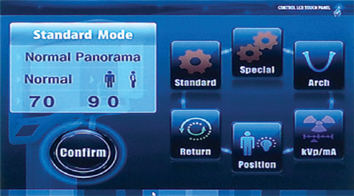

Versatile LCD Touch Panel

The 10.4 inches wide LCD touch panel enables operation of PaX-Primo right next to the patient.
You can adjust patient positioning and choose capturing mode through the LCD touch panel.

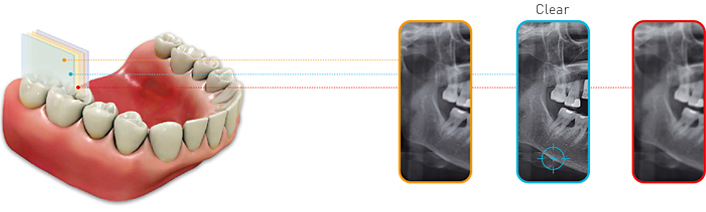

Value Added Panoramic image Auto Focusing Technology

Through its Auto Focusing Technology, an optimized image can automatically be reconstructed.
PaX-Primo with Auto Focusing Technology always acquires optimum images eliminating concerns on malpositioning and untypical patient arch.

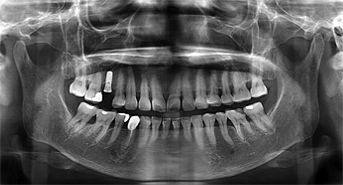

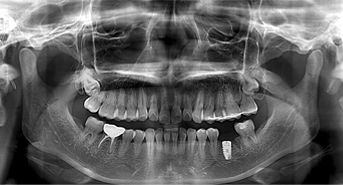

Panoramic image with Auto-Focusing function

In case of patient’s head is turned
In case of patient positioned behind the line


SPECIFICATION

Function  Panoramic
Focal Spot  0.5mm
Gray Scale  14bit
Patient Position  Standing/Wheel-chair accessible
Dimension  1115x1150x2200
FDD(SID)  531.2mm
Weight  95kg
Sensor Type  CMOS
Generator  Voltage : 50~80kVp / Current : 2~10mA
Exposure Time  Normal : 9.7sec / High Resolution : 13.5sec
* The specificaltions are subject to change without prior notice.

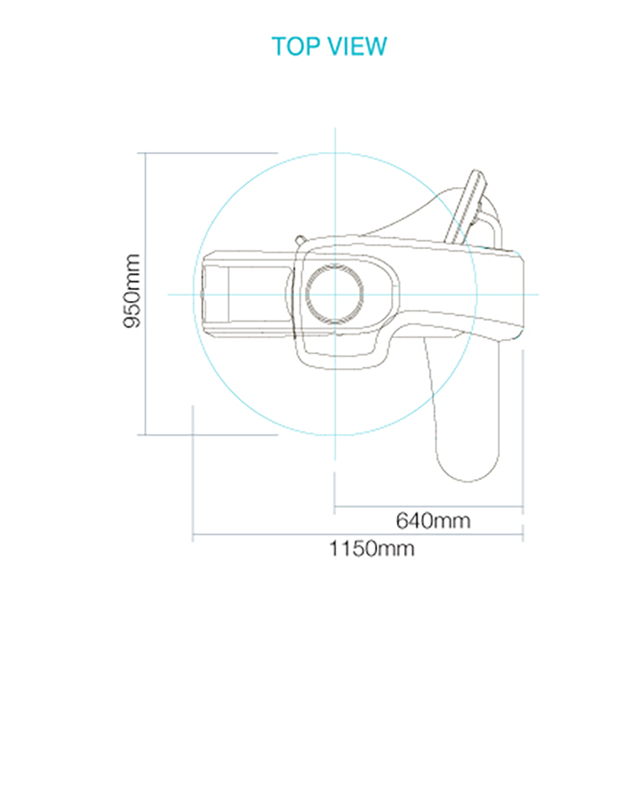

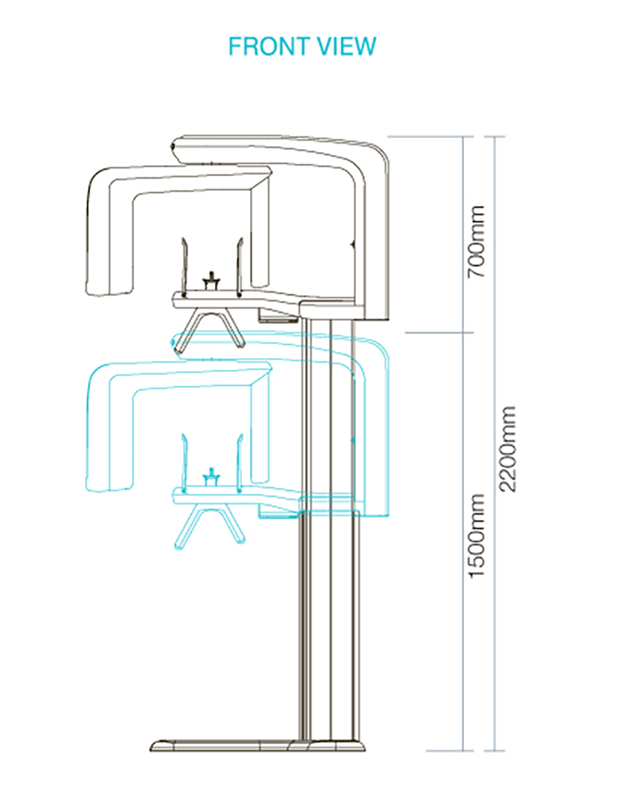

DIMENSIONS

Pano
