WORLD’S FIRST FREE FOV

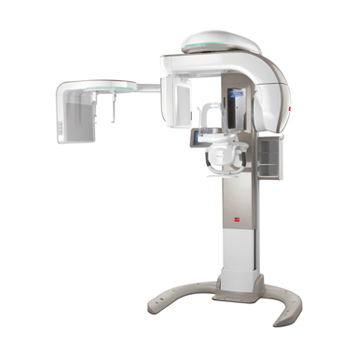

PaX-Reve3D

WORLD’S FIRST FREE FOV,
PaX-Reve3D

The Largest Field-of-View with in 3 in 1 System
  • CBCT + Real Panoramic + One Shot Cephalometric
  • FOV 5X5~15X15cm (Optional Double Scan Mode – 15X19cm)
The First CBCT to Offer Free FOV Function
  • Freely select the region of interest & size based on the purpose of diagnosis
The Best Image for Dental diagnosis
  • MAR (Metal Artifact Reduction) for CBCT
  • Auto Focusing for Panoramic
User Friendly System
  • Camera & Voice Communication
  • Full color LCD Touch Panel
  • Wheelchair Accessibility

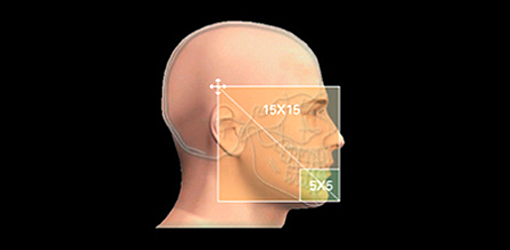

COVERS ALL OF DENTAL DIAGNOSTIC AREA WITH FREE FOV FUNCTION

Pax-Reve3D is the first dental CT which realizes the Free FOV function. It offers various FOV sizes from 5x5 to 15x15. These varying FOV sizes expand the diagnostic areas.
Within this range, you can freely select the region of interest and the FOV size accordingly based on the need or purpose of diagnosis. This resolutionary function improves the accuracy and efficiency of diagnosis.
Further more, Pax-Reve3D considers user convenience by defining the typical default values from small to large - 5x5cm, 8x6cm, 12x8cm and 15x15cm. There is also an optional double scan mode to achieve a wider FOV size of 15x19.


Multi FOV
Free FOV
FOV 15x15
FOV 12x8
FOV 8x6
FOV 5x5


OPTIMIZED PANORAMIC DIAGNOSIS

PaX-Reve3D provides the most precise and high quality panoramic image by innovative imaging process and accumulated experience in dental imaging from VATECH.
It improves your diagnostic accuracy with increased treatment planning and patient satisfaction.



SMART SENSOR AUTO-SWITCHING

Pano and CT Auto-switching technology

Panoramic

CT



SUPERIOR CEPHALOMETRIC IMAGE

One Shot type Cephalometric

Three different ceph image sizes reduce unnecessary X-ray dosage and scans the ideal area of cranial anatomy for your diagnosis and treatment planning

LATERAL

SMALL 20x20cm (8x8")
MEDIUM 23x35cm (9x10")
SMALL 20x20cm (8x8")


OS(One Shot Standard)





OP(One Shot Premium)



SPECIFICATION

Function CBCT+Pano+Ceph
FOV size 5x5~15x15(15x19:option)
Scan Time CBCT : 15sec. / 24sec.
Pano : 9.7sec. / 13.5sec.
Ceph : 0.5~1.0sec.
CBCT sensor CMOS Sensor
Focal Spot 0.5mm
Generator Voltage 50~90kVp
Generator Current 2~10mA
Voxel Size 0.08~0.3mm
Reconstruction Time Less than 120sec.
Rotating Unit Scan Angle 360
Patient Position Standing / Wheel-chair accessible
Dimention[WxDxHmm(inch)] 2050(80.7) x 1570(61.8) x 2330(91.7)
Weight Without Ceph : 210kg(463lbs)
With Ceph : 250kg(551lbs)
* The specificaltions are subject to change without prior notice.


DIMENSIONS

Pano/CBCT
Pano/CBCT/OneShotCeph
