THE PERFECT IN DENTAL IMAGING EVOLUTION

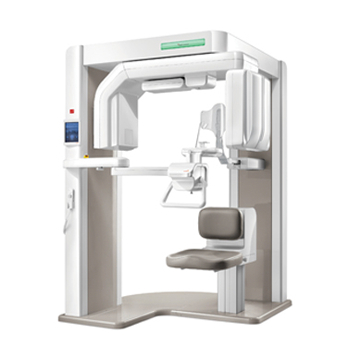

PaX-Zenith3D

THE PERFECT IN DENTAL IMAGING EVOLUTION,
PaX-Zenith3D

The Largest Field-of-View 24X19cm
  • The most extended FOV range from 5X5cm to 24X19cm
Free FOV Function
  • Freely select the area & Size to capture
Multi Imaging Solution
  • CBCT, Digital Panoramic and Reconstructed Cephalometric Images
Advanced Image Processing System
  • Metal Artifact Reduction Solution
  • Auto Focusing
Safe & User Oriented System
  • Pulsed X-ray system with low X-ray dosage
  • Patient monitoring system with embedded camera


THE LARGEST FOV WITH 3D IMAGES :
24X19cm & Free FOV Selection

PaX-Zenith3D offers the most comprehensive radiographic information on dental and skeletal anatomy.
With the largest FOV size (24X19cm) in the market, it satisfies the clinical diagnostic requirement of all dental radiologists and practitioners including oral maxillofacial surgeons, apnea specialists.

The free FOV function of PaX-Zenith 3D is the world’s first implementation of such technology. With this function, the X-ray beam collimator is adjusted to produce an image of a specific region of interest (ROI) from the size of 5X5 cm to 24X19 cm based on a particular treatment need.

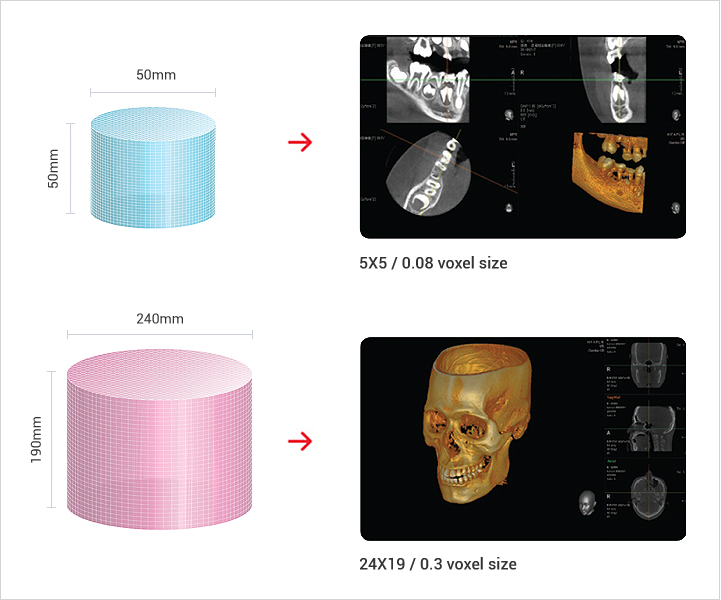

Multi FOV, Free FOV

  • Multi FOV: From part to Full Skull capturing available with Multi FOV function
  • Free FOV: From FOV 5X5 to FOV 24X19, Free FOV selection available

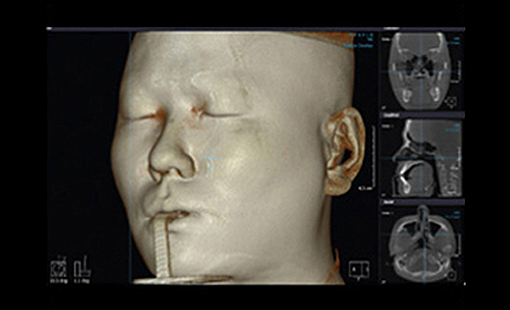

Multi FOV
Free FOV

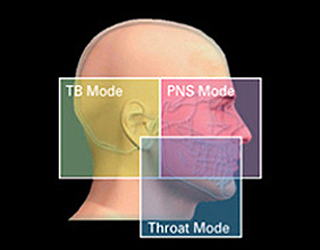

ENT FOV

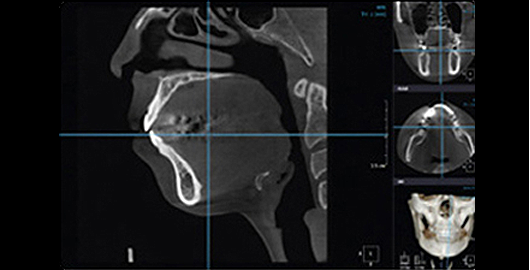

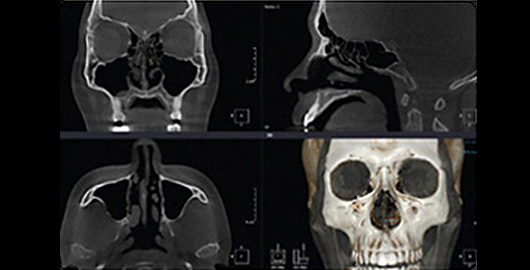

FOV 15x15
FOV 15x15


SMART SENSOR AUTO-SWITCHING

  • Automatic switching technology in Pano and CT
  • Free FOV : From FOV 5X5 to FOV 24X19, Free FOV selection available

Panoramic

CT

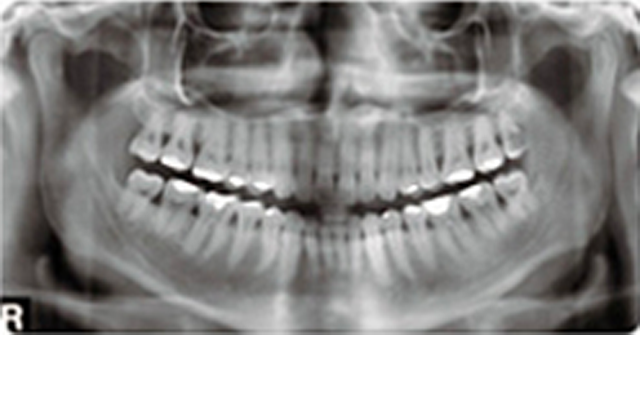

OPTIMIZED PANORAMIC DIAGNOSIS

PaX-Zenith3D provides the most precise and high quality panoramic image by innovative imaging process and accumulated experience in dental imaging from VATECH.
It improves your diagnostic accuracy with increased treatment planning and patient satisfaction.



Smart Panoramic Imaging : Auto-Focusing Technology

PaX-Zenith3D is equipped with a unique panoramic imaging process ‘Auto-Focusing Technology’. The ‘Auto-Focusing’ function optimizes a radiographic image by compensating an incorrect patient positioning and untypical patient arches without the need for multi radiographic scans.

Case

Before
After


SPECIFICATION

Function CBCT + Panoramic
FOV Size(cm) Free FOV(5x5-24x19)
Scan Time CBCT 15sec. / 24sec.
 Pano 9.7sec. / 13.5sec.
CTBT Sensor CMOS Sensor
Focal Spot 0.5mm
Generator Voltage 50~120kVp
Generator Current 4~10mA
Voxel Size 0.08~0.3mm
Reconstruction Time Less than 221 sec.
Rotation Unit Scan Angle 360˚
Patient Position Seated / Wheel-chair accessible
Dimension[W x D x H mm(inch)] 1800(70.9) x 2000(78.7) x 1850(72.8)
Weight 493kg(1087lbs)
* The specificaltions are subject to change without prior notice.


DIMENSIONS
