STANDARD OF X-RAY SYSTEM

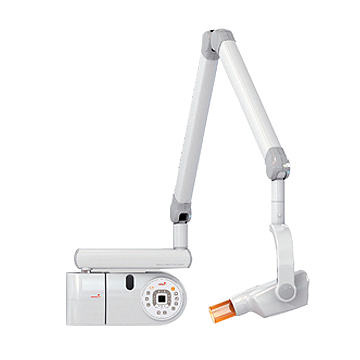

STANDARD X-RAY SYSTEM, ESX Series
- DC type high frequency intraoral x-ray system
- Intuitive & easy to use operating panel
- Smart & reliable design for easy & steady use
- Automatic & optional capture setting
- Support both of film and digital sensors
- Flexible installation (Wall type)
[W X H X D]
|205 X 140 X 85mm[Wall type]|
|Input Power Supply||220V± 10%|
|Arm Length [option]||450,600,900mm|
|Operation Time||0.08 - 1.5 sec|
|Total Filtration||2mm Al|
|Operation Humidity||30-75% rH|
|Weight||23.8 kg [Wall type]|
AN INTRAORAL X-RAY IMAGING SYSTEM WHICH OFFERS SAFETY, RELIABILILTY AND GREATER FUNTIONALITY
Secure Clear Image
ESX, our standard X-ray system provides higher diagnostic value with superior image quality for dentist via precise & advanced intra-oral radiographic techniques.
Especially the DC type - high frequency intraoral X-ray system secures improved image quality compared to existing AC equipment.
Intuitive & easy to use operating panel
- Straightforward process for image capture with intuitive Icons
- Set sensor type, patient type, tube voltage, exposure time and capture area.
Automatic & optimal capture setting
The capture condition can be controlled easily according to the capture area and patient condition in order to realize an optimum image quality based on diagnostic needs. The settling values can be automatically or be manually set.
Smart & reliable design for easy & steady use
The smart design of the x-ray tube head rotates in a circle and can be smoothly aimed at any diagnostic imaging position. Furthermore, the strong and durable arm structure secures accurate images and simple positioning.
