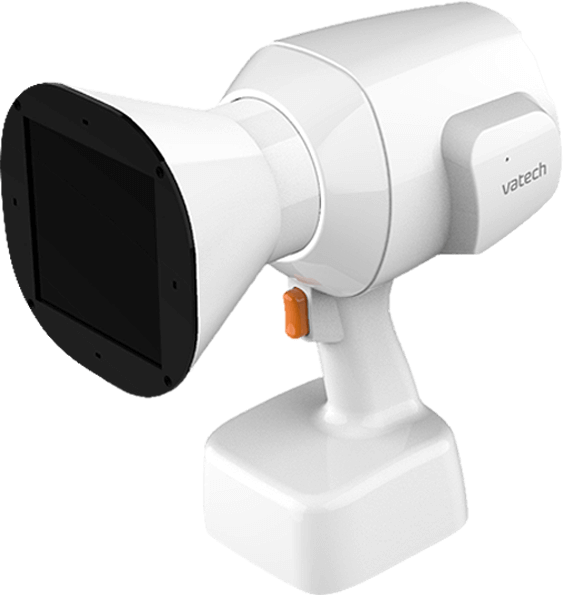

The Lightest
Digital Portable X-ray
EzRay M
Low dose for everyone

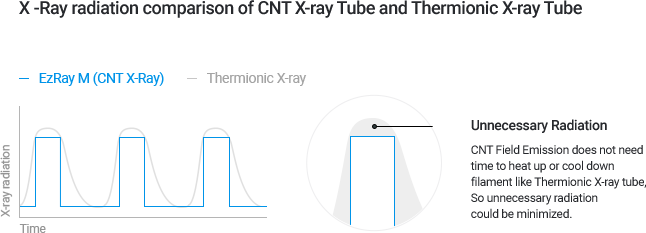

- Minimize unnecessary radiation with the digital X-ray tube
- Reduce radiation exposure risk for patients and staffs
- Swift diagnostic times with clear images and low dose
Any time, Anywhere ideal with no space constraints
- The lightest weight, 1.8kg
- Expeditious to use in small rooms as its lightness and compact size
- Carry and use easily for ambulatory service

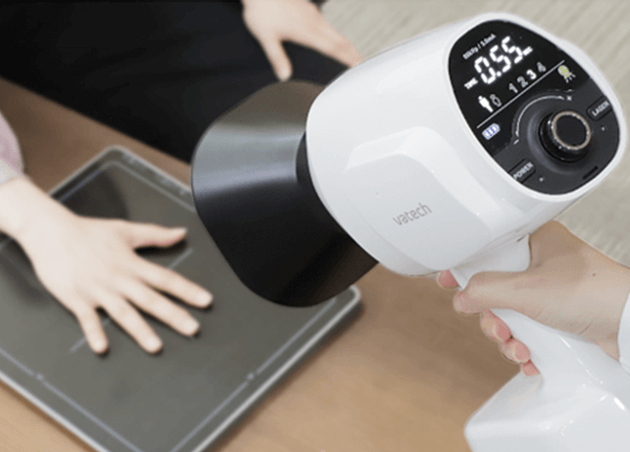

Focus on our users’ usability
- Shooting continuously without any standby time Easy to get each inhalation and exhalation images
- Rechargeable lithium-ion battery with long life Powerful standard battery adopted, 2,500mAh
300 shots available at fully charged (65kV, 3mA, 0.5s) - The Intuitive user interface allows easy learning to use Laser beam indicates exposure area
Only use one dial to adjust all exposure conditions
For optimal workflow, users can register eight exposure settings in advance
Specification
Technical Details
| Focal Spot | 0.5mm | Options | Carrying case, Exposure switch & Stand |
|---|---|---|---|
| Power | 65kV / 3mA | Weight | 1.88kg |
| Exposure Time | 0.05 - 1.0 s | Duty Cycle | 1:60 or more |
| Battery Capacity | 2,500mAh | X-Ray Field | 450 x 450mm at FDD 1m |
The specifications are subject to change without prior notice
