Premium Panoramic Image Quality

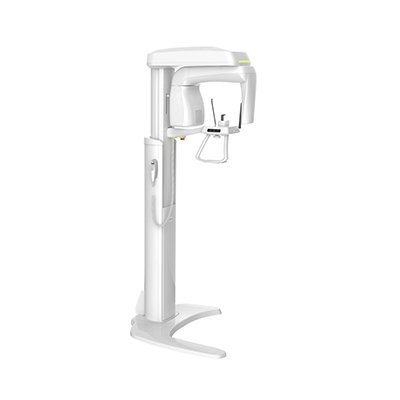

PaX-i Plus

PaX-i Plus

Rapid Ceph
  • 1.9 second acquisition time produces superb image quality
  • Reduced motion artifacts and faster workflow
User friendly EzDent-i software
  • Powerful diagnostic value with Insight feature
  • Complete solution for consultation
  • Easy to learn, easy to use


THE ADVANCED IMAGING SOLUTION FOR ACCURATE
DENTAL DIAGNOSIS

The PaX-i Plus provides the most precise and high quality panoramic images by combining image processing and accumulated experience in dental imaging from Vatech.
This will increase your diagnostic accuracy for improved treatment planning and patient satisfaction.

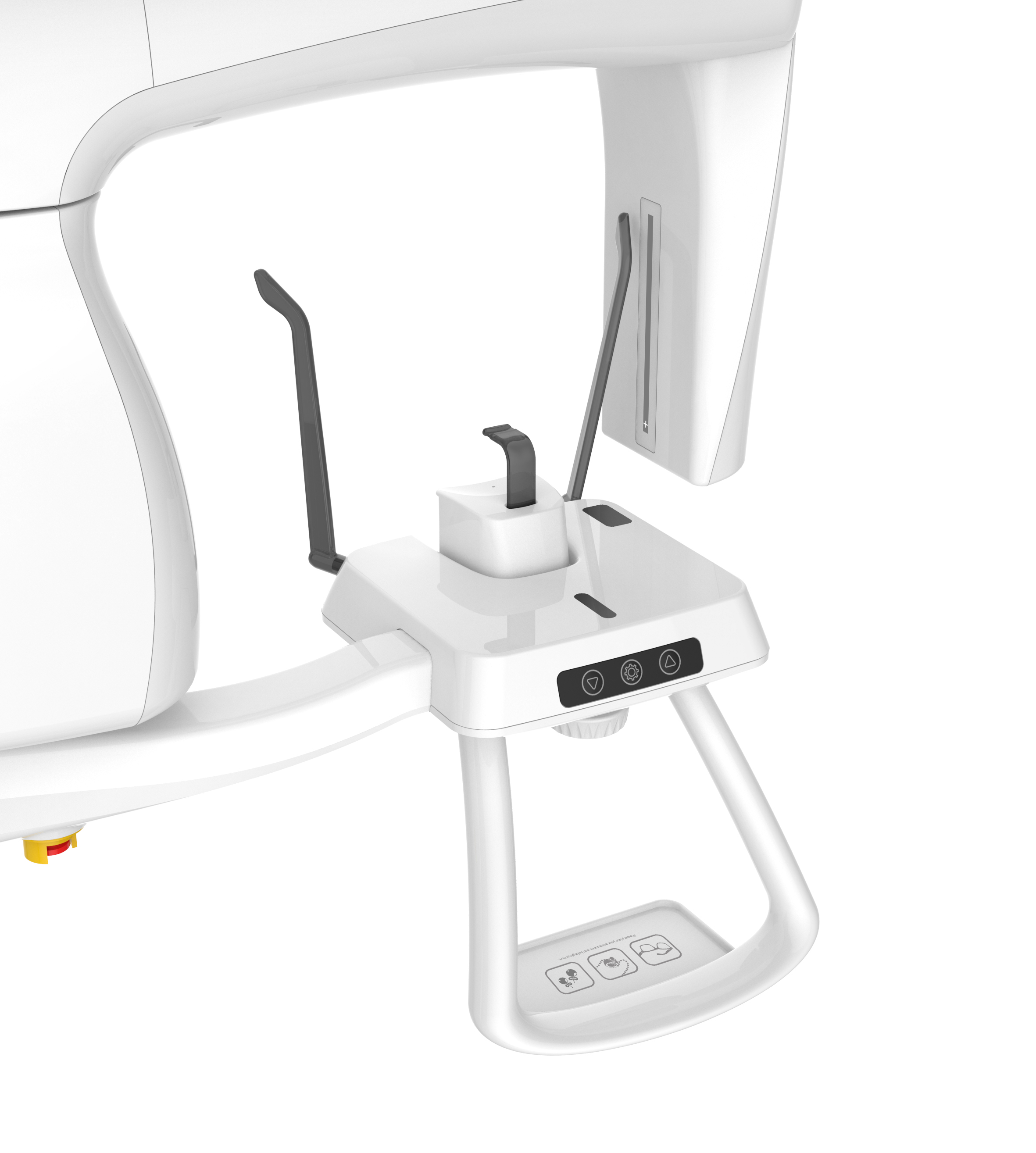

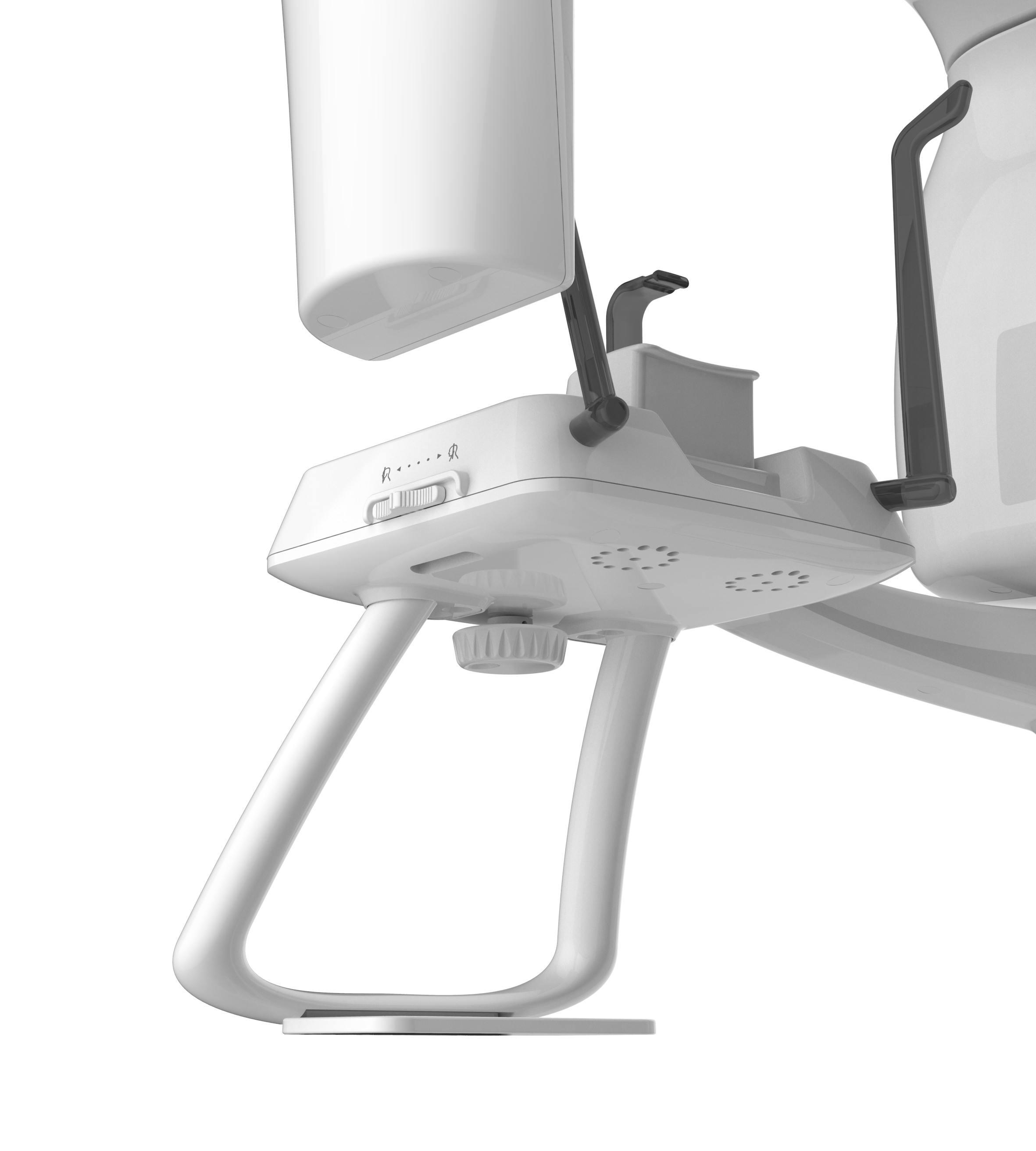

MAKE YOUR DIAGNOSIS EASY AND EFFICIENT WITH VARIOUS CAPTURE MODES

Bitewing Mode
TMJ Mode
SELECTION ARCH EXAMINATION MODE
PANO EXAMINATION Narrow / Normal Wide / Child Standard / Right / Front / Left
Orthogonal Orthogonal Standard / Right / Front / Left Bitewing Standard / Right / Front / Left
SPECIAL EXAMINATION Normal TMJ LAT Open / Close
TMJ PA Open / Close
Sinus LAT / PA

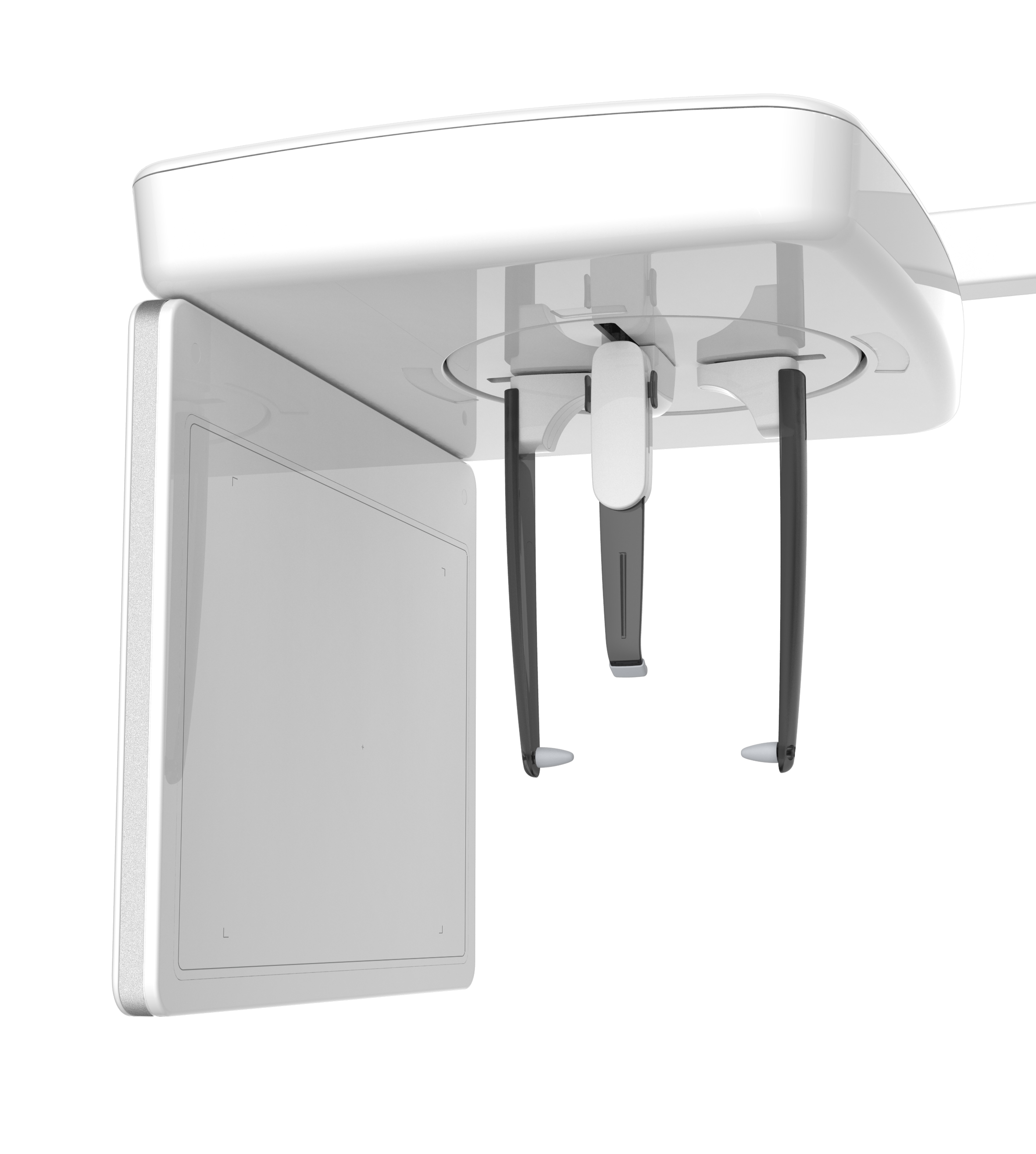

MINIMIZE MOTION ARTIFACTS WITH RAPID CEPH TECHNOLOGY

The next step in cephalometric technology, Vatech's new Rapid Ceph minimizes motion artifacts and enables faster diagnostic workflow while providing the highest quality digital images.

GREAT CLINICAL CARE WITH RAPID CEPH TECHNOLOGY

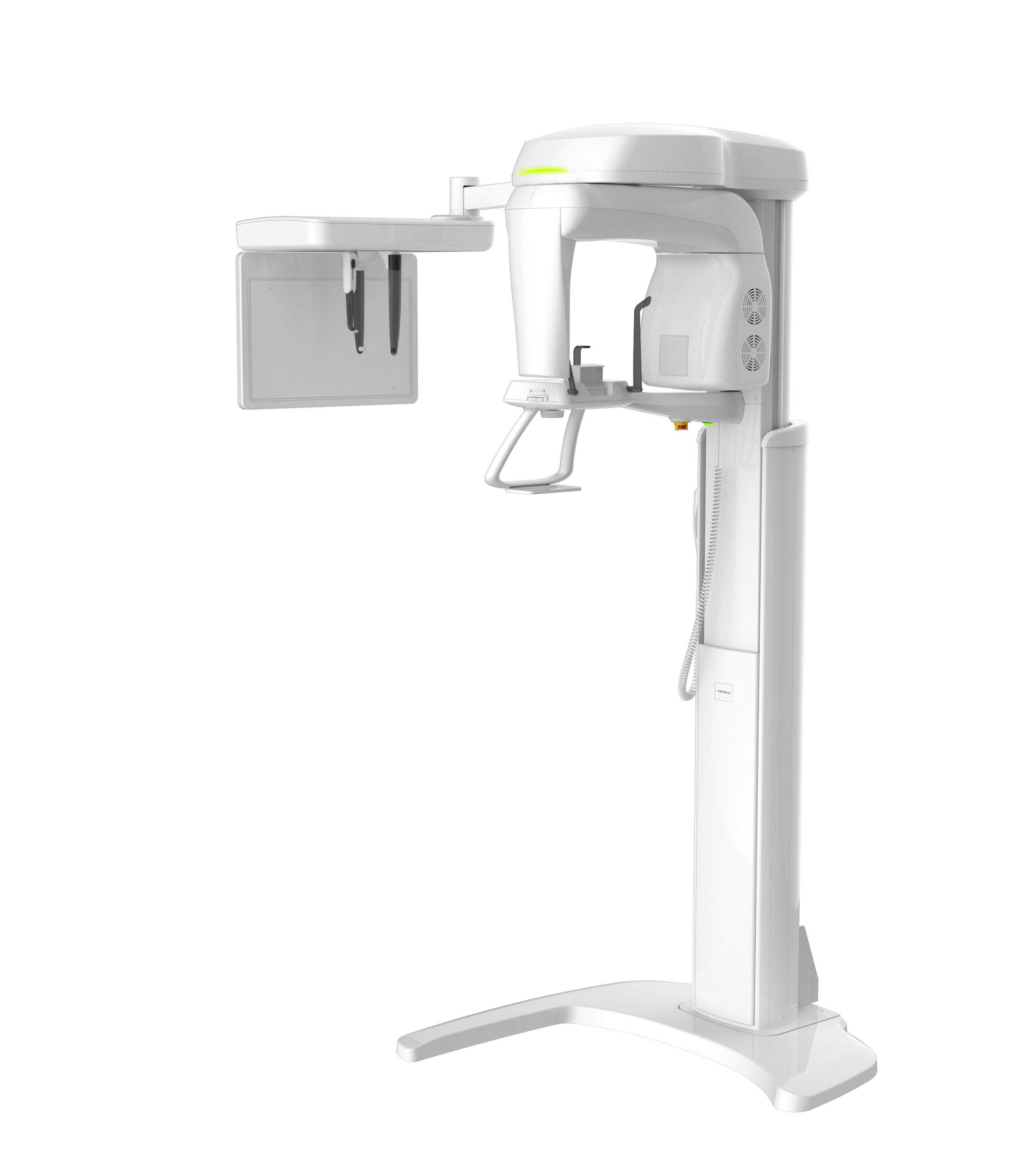

PRODUCT CONFIGURATION

  PANO CEPH
PaX-i Plus NP -
PaX-i Plus NC





SPECIFICATIONS (PaX-i Plus : PCH-30CS)

* The specifications are subject to change without prior notice.

Function Pano + Ceph Weight With Ceph unit 120kg (264.5 lbs. - without Base)
Scan Time

Pano : Normal 10.4 sec / HD 14 sec
Ceph : 1.9 sec / 3.9 sec

Focal Spot

0.5mm (IEC60336)

160kg (352.7lbs. - with Base)
Tube Voltage / Current 60~90 kV / 4-10 mA
Gray Scale 14 bit Dimensions With Ceph unit 1930mm(L) x 1200mm(W) x 2300mm(H)
