Beyond 2D, Depth Added Panorama

PaX-i Insight

DEPTH ADDED PANORAMA, PaX-i Insight

PaX-i Insight is a step forward technology from the traditional way of acquiring images along a single focal layer. PaX-i Insight serves multi layers which add depth to panoramic image. Insight simply means more!
Find more information from panoramic image. PaX-i Insight allows you to have insight with the depth information.
It improves your diagnostic accuracy with increased treatment planning and patient satisfaction.



Insight Pan
  • The next evolutionary step forward in panoramic imaging with Insight Pan
Rapid Ceph
  • 1.9 second acquisition time produces superb image quality
  • Reduced motion artifacts and faster workflow
User friendly EzDent-i software
  • Powerful diagnostic value with Insight feature
  • Complete solution for consultation
  • Easy to learn, easy to use



ADVANCED IMAGE SOLUTION WITH INSIGHT PAN

The next evolutionary step forward in panoramic imaging.

The PaX-i Insight is capable of taking a multi-layered panoramic image called an Insight Pan which provides a unique, in-depth look across a single focal trough.

Since each patient may have a slightly different arch, conventional panoramic images may occasionally miss important details which land outside of a single focal layer.
Insight Pans are capable of capturing multiple-layered images, ensuring that all details are captured in a depth-added panoramic image.

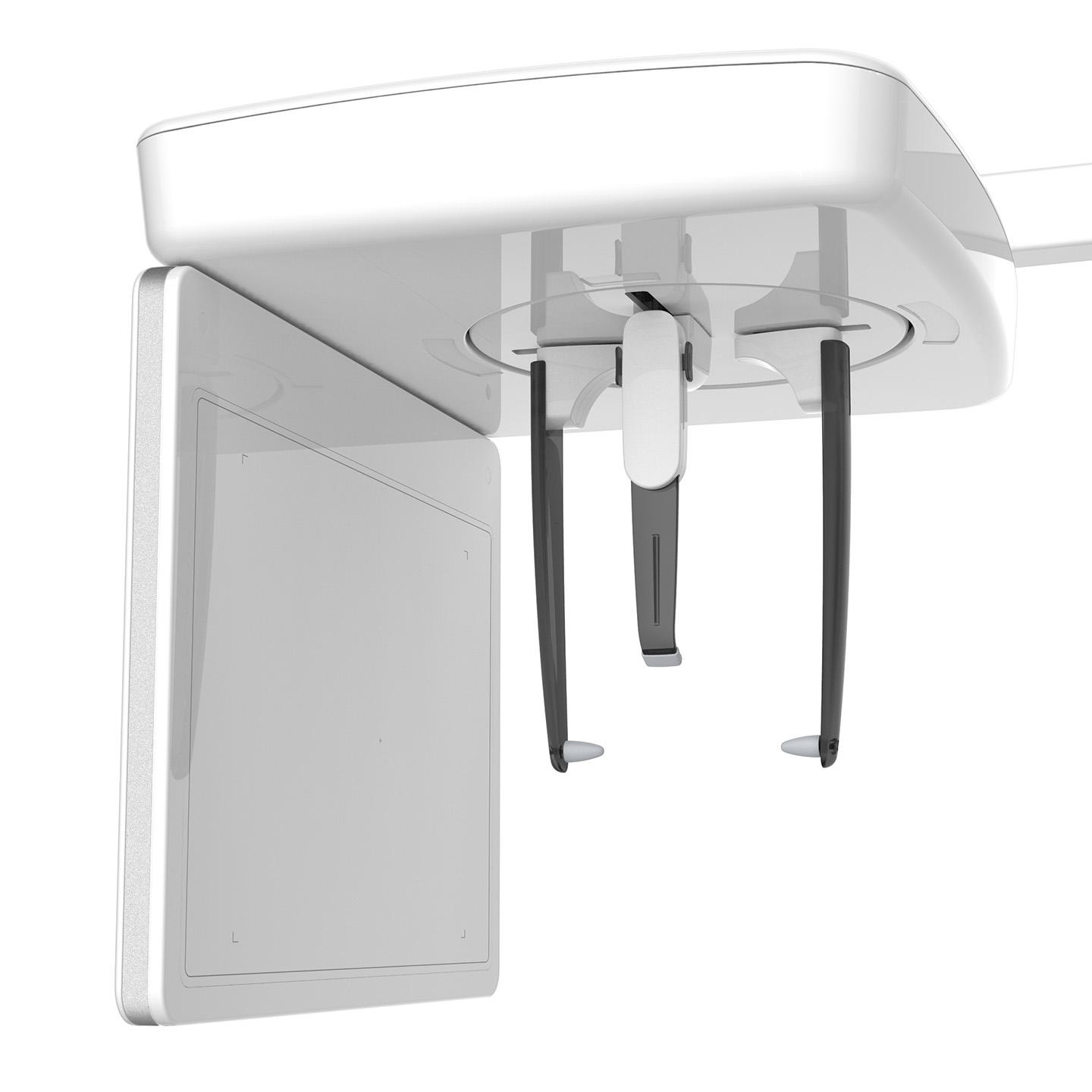

MINIMIZE MOTION ARTIFACTS WITH RAPID CEPH TECHNOLOGY

The next step in cephalometric technology, Vatech's new Rapid Ceph minimizes motion artifacts and enables faster diagnostic workflow while providing the highest quality digital images.

GREAT CLINICAL CARE WITH RAPID CEPH TECHNOLOGY








WHAT IS INSIGHT?

Our next-generation Insight Pans allow doctors to obtain never-before-seen in-depth diagnostic information, from anterior to posterior, on a digital panoramic image.
The Insight feature allows doctors to explore their region of interest while giving them the capability to find mesiobuccal, distobuccal, and palatal root information.




Use the PaX-i Insight's Next Generation Panoramic Technology to Discover:

Hidden multi roots and canals /  Location of pulp and gutta-percha / Broken files or root fractures





PRODUCT CONFIGURATION

●●

  PANO CEPH

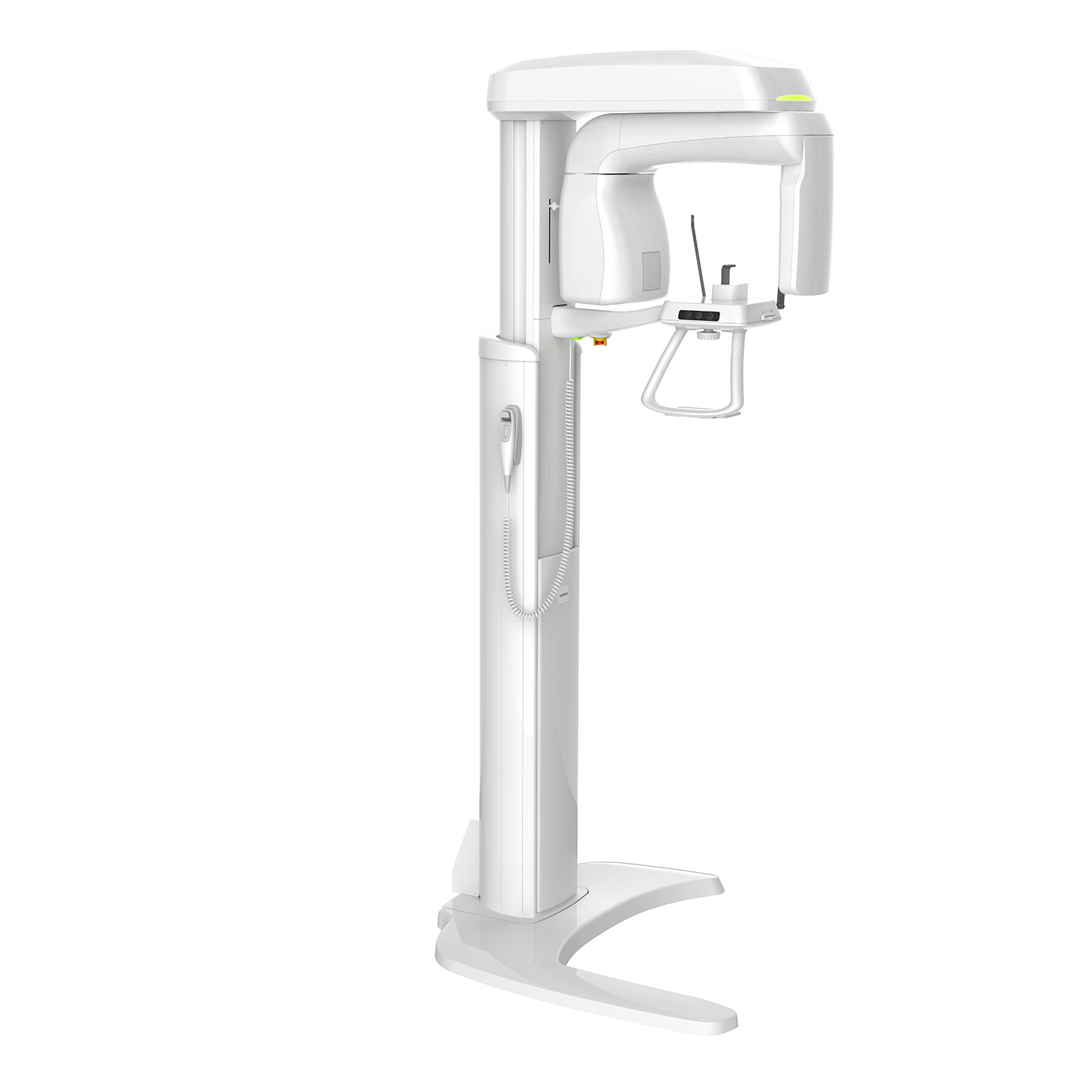

PaX-i Insight NP -

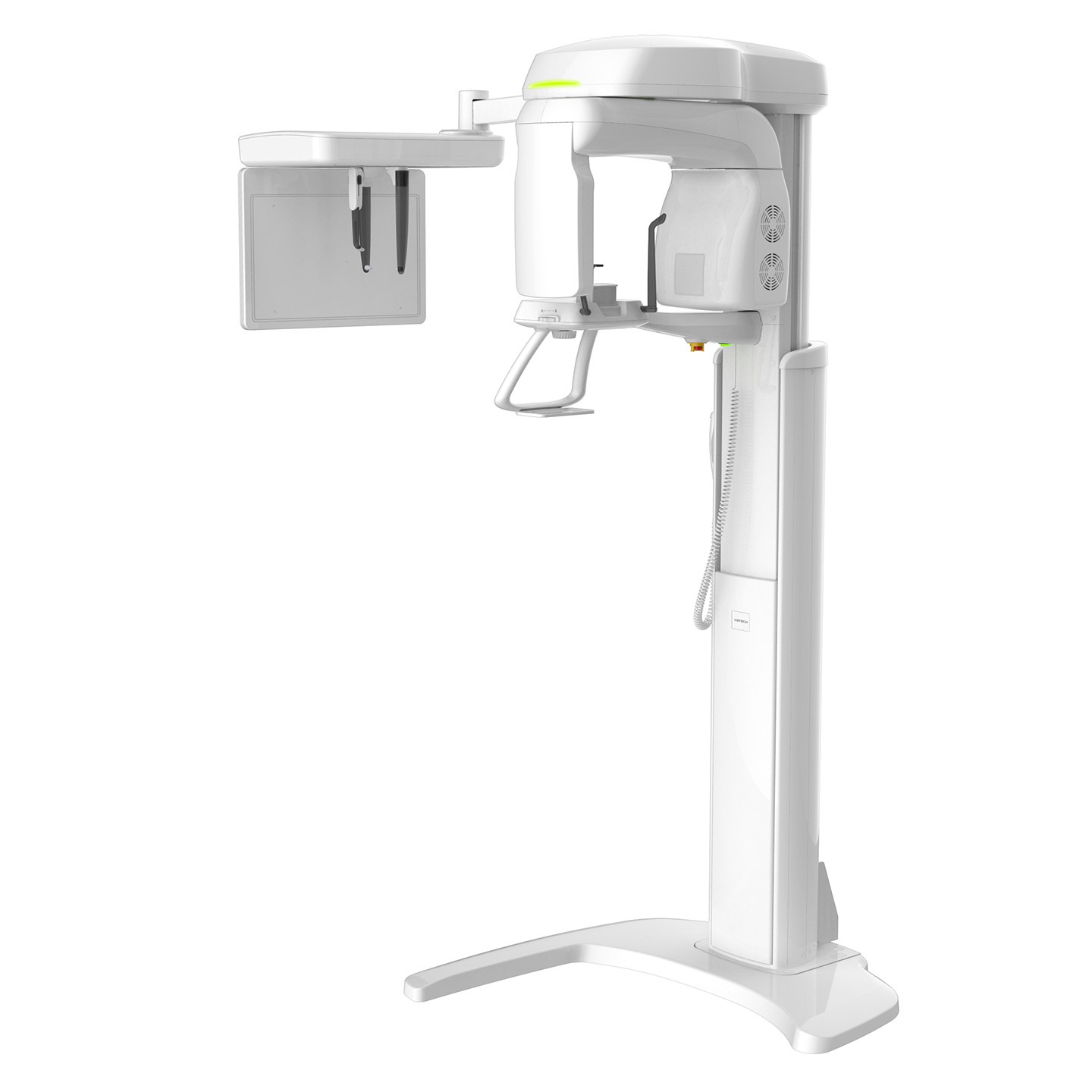

PaX-i Insight NC





SPECIFICATIONS (PaX-i Insight : PCH-30CS)

* The specifications are subject to change without prior notice.

Function Pano + Ceph Weight Without Ceph unit

95kg (209.4 lbs. - without Base)

135kg (297.6 lbs. - with Base)

Scan Time

Pano
Normal 10.4/14.0/21.0 sec
Insight PAN 10.4 sec

Ceph
1.9 sec / 3.9 sec

Focal Spot

0.5mm (IEC60336)

With Ceph unit

120kg (264.5 lbs. - without Base)

160kg (352.7 lbs. - with Base)

Tube Voltage / Current 60~99 kV / 4-10 mA
Gray Scale 14 bit Dimensions Without Ceph unit 990mm(L) x 1200mm(W) x 2300mm(H)
With Ceph unit 1930mm(L) x 1200mm(W) x 2300mm(H)



DIMENSIONS [Unit: mm]

Pano
Pano/Scan Ceph
