Rasing The Bar For Excellence
RASING THE BAR FOR EXCELLENCE
VATECH'S NEW PREMIUM SOLUTION,
Multi-modality CBCT, most comprehensive set of FOV sizes collimated from 21x19 down to 8x8, to provide a whole array of diagnostic tools to the discerning clinicians.
|FOV Size 21x19||
|1 Scan 6 Images||
Consult in New Terms with Auto Images!

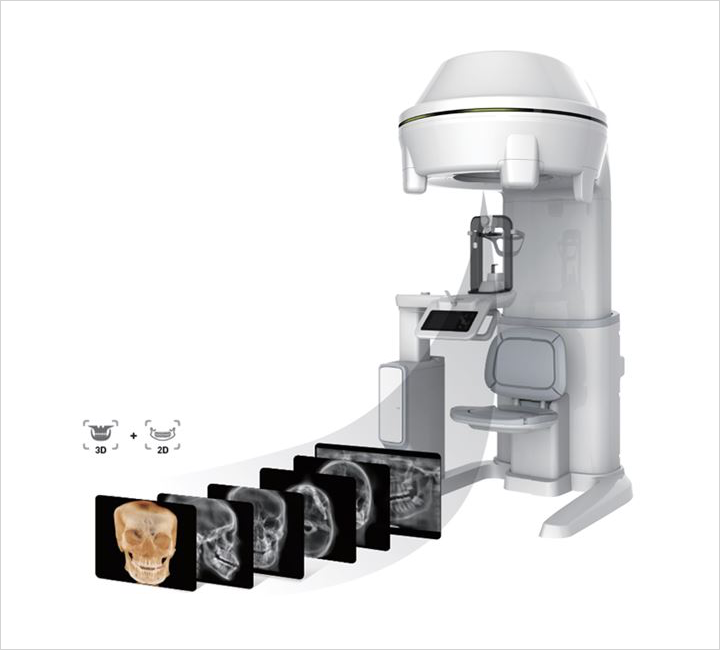

POWERFUL DENTAL DIAGNOSTIC VALUE WITH 3D IMAGES

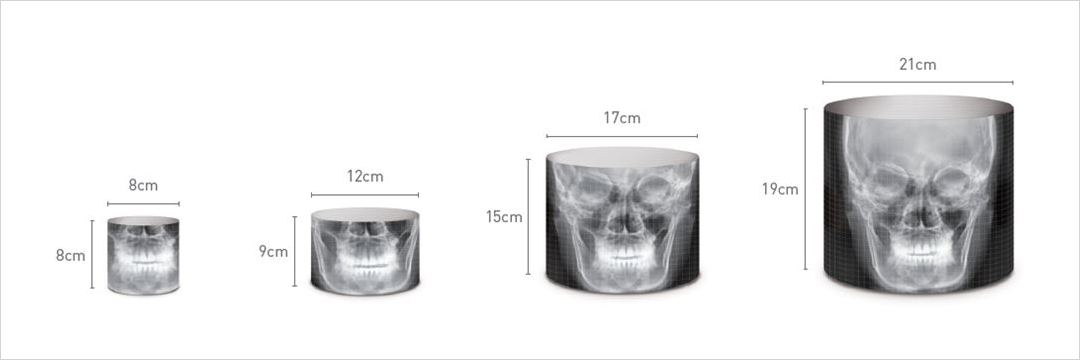

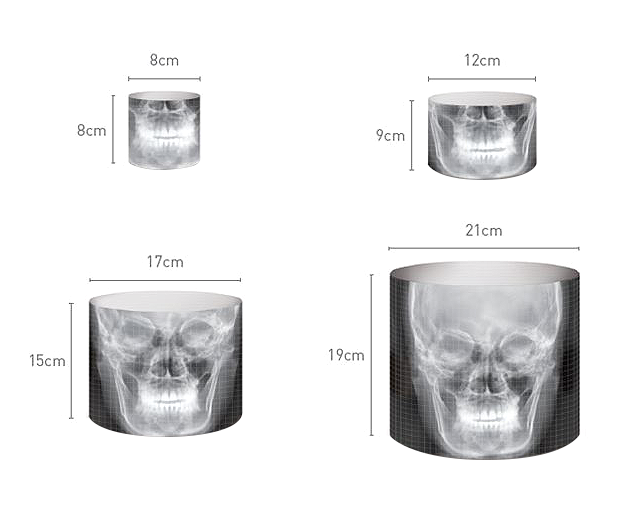

Green21 provides 4 multi FOV sizes ranging from 8x8 to 21x19 for Dental CT modality. Meaning, you can select the most appropriate FOV for a particular diagnostic task.
THE OPTIMAL SOLUTION FOR ENT DIAGNOSIS
Green21 provides ENT mode(Airway / TB&PNS) for ENT specialists. The fields of view (17x11) are set based on patients’ most common cases such as cholesteatoma, chronic sinusitis, sleep apnea syndrome.
[Airway] A powerful function for Airway Volume Analysis
Simple Airway Selection
- 2-click airway region selection
Automatic Airway Volume Measurement
- Segmented airway volume and color coded thickness measurements
- Automatically calculated total volume and minimum area measurements
PROFESSIONAL DIAGNOSTIC VALUE WITH
Green21 provides the most precise and high quality panoramic image. Clear and sharp panoramic image brings you better diagnostics. Enhanced details especially in the anterior and dental roots can be viewed. These consistently high quality images will become the new standard of panoramic imaging.
MAGIC PAN creates a more superb panorama image.
It is acquired through the elimination of distorted and blurred images caused by improper patient positioning (Optional).
Focused image is reorganized throughout the whole dental arch and the image quality can be increased. The image becomes clearer especially in the incisor and canine region, TMJ areas and root canal.
|Function||CT [Auto Pano/Auto Ceph] + Pano + 3D Photo(Optional)|
|CT - FOV Size (cm)||Dental CT : 21 x 19, 17 x 15, 12 x 9, 8 x 8
ENT CT : 21 x 19, 17 x 11 [TB&TNS], 17 x 11 [Airway]
|Scan Time (sec)||Pano : 13.5
CT : 18
|Voxel Size (mm)||0.12 ~ 0.4|
|Focal Spot||0.5 mm|
|Gray Scale||14 bit|
|Tube Voltage||60 - 120 kV|
|Current||4 - 10 mA|
|Patient Position||Seated / Wheel-chair accessible|
|Weight||321 kg [708lbs]|
