The Next Green Innovation

Green X

THE ADVANCED 4-IN-1 DIGITAL X-RAY IMAGING SYSTEM,
GREEN X

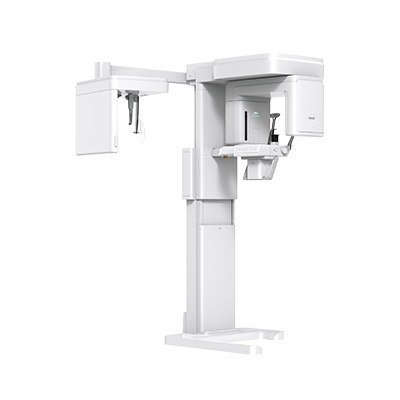

Green X is an advanced 4-in-1 digital x-ray imaging system that incorporates Pano, Ceph (optional), CBCT, and Model Scan.
It provides high-quality images with lower radiation by combining image processing.
This will improve your diagnostic accuracy and lead to increased treatment planning and patient satisfaction.

4¬IN¬1 DIGITAL X¬RAY IMAGING SYSTEM(¬PANO / CEPH / CBCT / MODEL SCAN)
MULTI FOV SELECTION
GREEN SCAN TIME
ENDO MODE WITH HIGH RESOLUTION
INSIGHT 2.0 FEATURE
3D SCANNING FOR MODEL



ENDO MODE WITH HIGH RESOLUTION

With its 4cm x 4cm volume mode and 50 micron voxel size, the Endo mode will optimize treatment
of highly-focused regions of interest. It is ideal for endodontic use because the dentist is able to
achieve an extraordinary image in a high-resolution voxel size

DENTAL MODE VS ENDO MODE
DENTAL MODE VS ENDO MODE



GREEN SCAN TIME

Due to its scan time, the Green X minimizes motion artifact and enables faster workflow. It produces superb diagnostic images, which will be a source of pride for any dental practice. Focusing on the highest quality of patient care, Vatech strives to improve the health and safety of your patients

LOW DOSE AND HIGH IMAGE QUALITY

What has been developed at Vatech breaks many conventions in dental radiography.
It was always believed that with low radiation comes inferior image quality, which renders it useless in clinical diagnosis. However, the Green X provides clinically diagnosable x-ray scans at a low x-ray dosage. With low dose radiography, achieving clinically diagnosable image quality is the new golden-standard.



THE ART-V

Metal artifact hinders visualization and naturally reduces
diagnostic confidence.
Clear images cause less stress and provide more confidence
which lead to accurate diagnosis for implant planning.



*ART-V is the new name of Vatech’s MAR function.
(Artifact Reduction Technology of Vatech)

ART-V On
ART-V Off


MULTI FOV SELECTION

Green X offers a range of selectable fields of view. The Multi FOV option allows users to select the optimum FOV mode while minimizing exposure to areas that are not in the region of interest. The selection includes the following FOV sizes for diagnostic needs: 16x9, 12x9, 8x8, 8x5, 5x5 and 4x4. These options cover the full arch region, sinus and left/right TMJ, and suits most oral surgery cases and multiple implant surgeries.

FOV ROI ROI Explanation
16x9
Sinus & TMJ

Optimal size for sinus & TMJ diagnosis

12x9
Full Arch

Optimal size to cover the entire arch

8x9
Arch

Basic FOV size & select a left or right or center arch

5x5
Endo & Single implant

Optimal size to cover 3~4 teeth through capturing ROI



PROFESSIONAL DIAGNOSTIC VALUE WITH PANORAMIC IMAGES

Green X provides the most precise and high quality panoramic image. Clear and sharp panoramic image brings you better diagnostics. Enhanced details especially in the anterior and dental roots can be viewed. These consistently high-quality images will become the new standard of panoramic imaging.

MAGIC PAN

MAGIC PAN creates a more superb panorama image. It is acquired through the elimination of distorted and blurred images caused by improper patient positioning (Optional).

NORMAL PAN

Focused image is reorganized throughout the whole dental arch and the image quality can be increased. The image becomes clearer especially in the incisor and canine region, TMJ areas and root canal.




PROFESSIONAL DIAGNOSTIC VALUE WITH CEPHALOMETRIC IMAGES

Green X provides optimal images with an exclusively designed sensor for cephalometric diagnosis.



Scan type Cephalometric

Scan type cephalometric offers two image sizes, LAT and FULL LAT, you can choose one of them based on the purposes of your diagnostic needs.

LATERAL / FULL LATERAL

Provide specialized high quality images to suit Full lateral gives 30% larger images and the occipital orthodontics and maxillofacial surgeries' area of the patient for comprehensive diagnosis. (optional)
